45,000-50,000 rpm
High Speed
< 4 microns
Dynamic Runout
300 W
Output Power

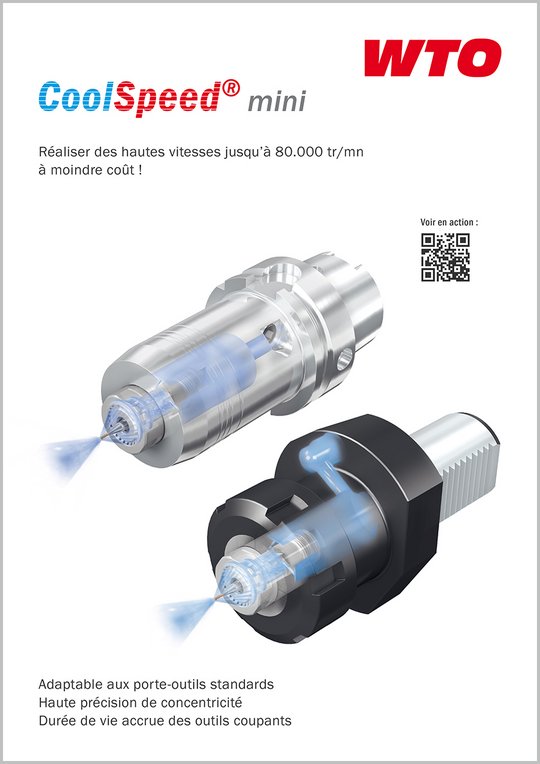

CoolSpeed® mini is a new, high speed, turbine-driven spindle that costs a fraction of competing spindle systems. It is plug-and-play, crash-resistant, and maintenance-free.
Continuous high precision
- The cutting tool shank serves as the spindle shaft
- Dynamic run-out 4 microns or better
- Bearings easily replaced with each cutting tool change
Efficiently turn any machine into an ultra-high-speed machining center
- Milling Centers, Turning Centers, Swiss Type Lathes
- Extends the machine spindle life time
- Fits in standard tool holders for automatic tool change
Includes 2 bearings and 1 turbine, which should be replaced each time the tool is changed. The bearings and turbines are not intended for reuse. Each Replacement kit is suitable for the respective tool shank diameter.
Tool Shank Diameter: 3 mm, 4 mm, 6 mm
Used to assemble the bearings and turbine onto the tool shank. The assembly device works with any of the three supported metric tool shank diameters.
Tool Shank Diameter: 3 mm, 4 mm, 6 mm
Consists of a pressure regulator and lubricator and is used to add an oil mist to the compressed air and adjust the air pressure. CoolSpeed® mini Air should not be operated without oil mist.
A service unit can be found online or from your local supplier.
If the tool shank diameter is on the lower end of the manufacturing tolerance, it is possible that the rear bearing may not come out of the housing with the tool during a tool change. In this case, use the Bearing Puller to easily slide the bearing out from the housing.
All components needed to set up and use CoolSpeed® mini Air. The products are packed in a handy carrying case.
Includes:
CoolSpeed® mini Air
CM-SRK-030 Replacement Kit Ø3 mm
CM-SRK-040 Replacement Kit Ø4 mm
CM-SRK-060 Replacement Kit Ø6 mm
CM-SMD-346 Assembly Device
CM-SBW-001 Bearing Puller
Single open-end Wrench 24 mm
App „CoolSpeed® Pressure Gauge“
