Air Mist Driven

Bühne

45,000-50,000 rpm
High Speed

< 4 microns
Dynamic Runout

300 W
Output Power

Revolutionary patented spindle technology for rotation speed up to 50,000 rpm.

CoolSpeed® mini is a new, high speed, turbine-driven spindle that costs a fraction of competing spindle systems. It is plug-and-play, crash-resistant, and maintenance-free.

Continuous high precision

- The cutting tool shank serves as the spindle shaft

- Dynamic run-out 4 microns or better

- Bearings easily replaced with each cutting tool change





Efficiently turn any machine into an ultra-high-speed machining center

- Milling Centers, Turning Centers, Swiss Type Lathes

- Extends the machine spindle life time

- Fits in standard tool holders for automatic tool change

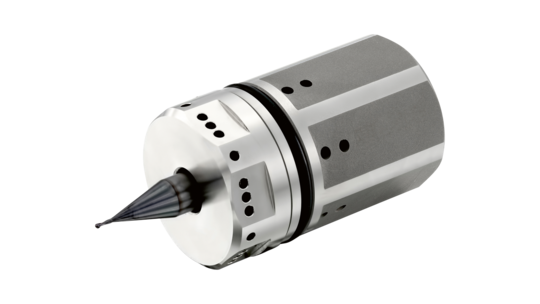

  • rpm: 45,000-50,000
  • Output Power: 300 Watts
  • Tool Shank Diameter: 1/8”, 3/16”, 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 25 mm
  • Air Pressure: 58-73 psi
  • Air Flow: 36.7 cfm

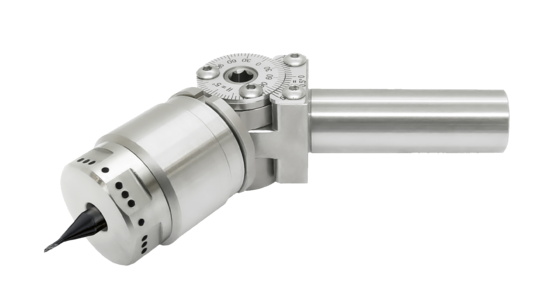

  • rpm: 45,000-50,000
  • Output Power: 300 Watts
  • Tool Shank Diameter: 1/8”, 3/16”, 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 16 mm
  • Air Pressure: 58-73 psi
  • Air Flow: 36.7 cfm

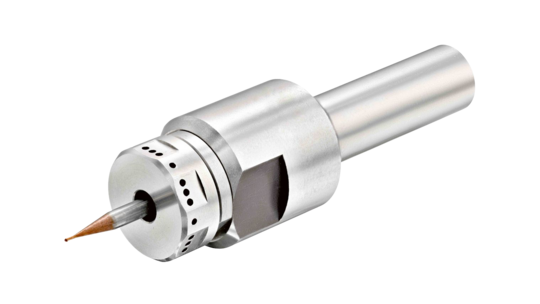

  • rpm: 45,000-50,000
  • Output Power: 300 Watts
  • Tool Shank Diameter: 1/8”, 3/16”, 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 16 mm
  • Air Pressure: 58-73 psi
  • Air Flow: 36.7 cfm
  • rpm: 45,000-50,000
  • Output Power: 300 Watts
  • Tool Shank Diameter: 1/8”, 3/16”, 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 25 mm
  • Air Pressure: 58-73 psi
  • Air Flow: 36.7 cfm
  • rpm: 45,000-50,000
  • Output Power: 300 Watts
  • Tool Shank Diameter: 1/8”, 3/16”, 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 16 mm
  • Air Pressure: 58-73 psi
  • Air Flow: 36.7 cfm
  • rpm: 45,000-50,000
  • Output Power: 300 Watts
  • Tool Shank Diameter: 1/8”, 3/16”, 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 22 mm, ¾“
  • Air Pressure: 58-73 psi
  • Air Flow: 36.7 cfm

Required Accessories

Bühne

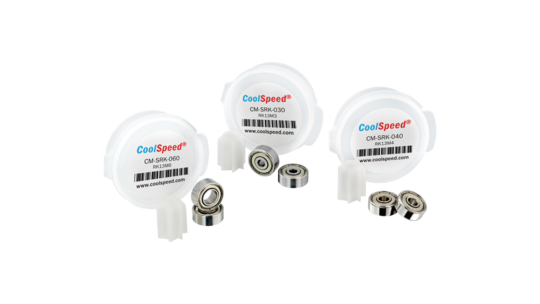

Replacement Kit

Includes 2 bearings and 1 turbine, which should be replaced each time the tool is changed. The bearings and turbines are not intended for reuse. Each Replacement kit is suitable for the respective tool shank diameter.


Tool Shank Diameter:          1/8”, 3/16”, 3 mm, 4 mm, 6 mm

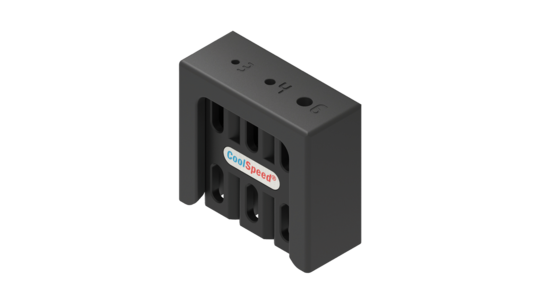

Assembly Device

Used to assemble the bearings and turbine onto the tool shank. The assembly device is available in metric or inch sizes.


Tool Shank Diameter: 1/8”, 3/16” (CM-SMD-1319)
or
Tool Shank Diameter: 3 mm, 4 mm, 6 mm (CM-SMD-346)

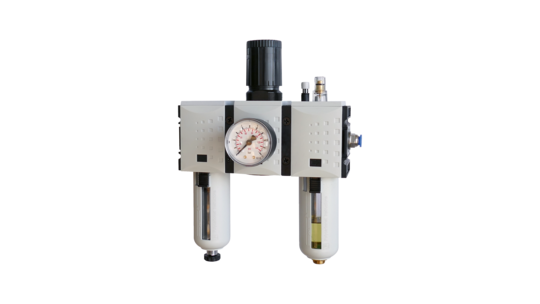

Service unit for compressed air

Consists of a pressure regulator and lubricator and is used to add an oil mist to the compressed air and adjust the air pressure. CoolSpeed® mini Air should not be operated without oil mist.



A service unit can be found online or from your local supplier.

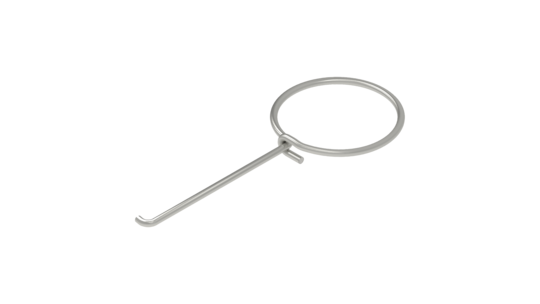

Bearing Puller

If the tool shank diameter is on the lower end of the manufacturing tolerance, it is possible that the rear bearing may not come out of the housing with the tool during a tool change. In this case, use the Bearing Puller to easily slide the bearing out from the housing.

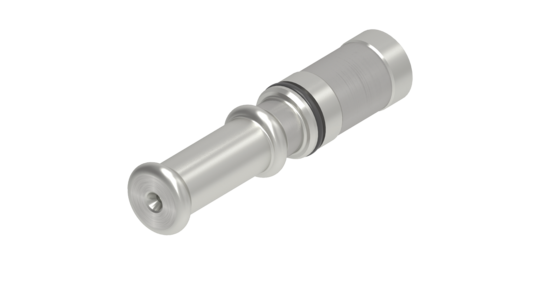

Master Gauge

Used for high accuracy angular alignment of CoolSpeed® mini V Air.

Starter Set

Bühne

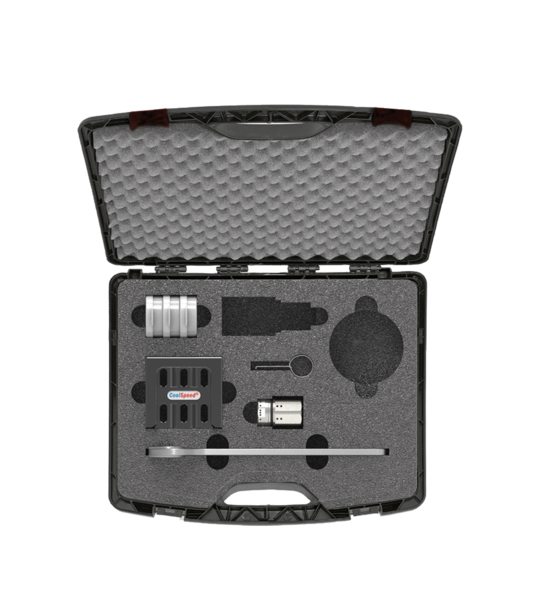

All components needed to set up and use CoolSpeed® mini Air. The products are packed in a handy carrying case.





Starter Set “mm dimensions” Includes:

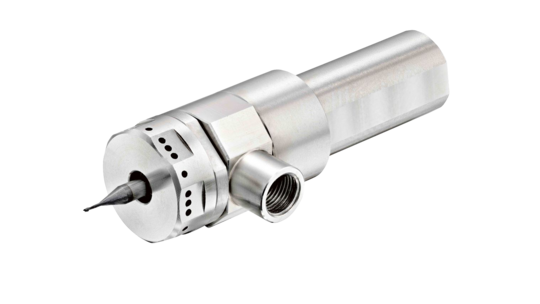

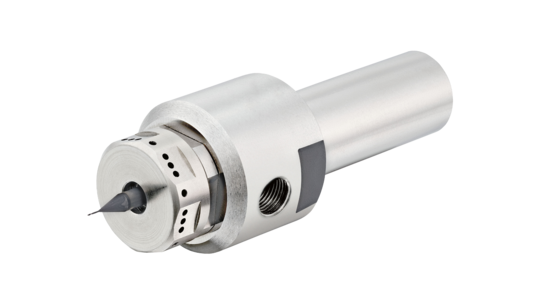

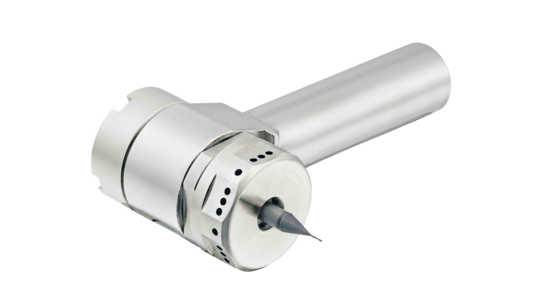

CoolSpeed® mini Air

CM-SRK-030 Replacement Kit Ø3 mm

CM-SRK-040 Replacement Kit Ø4 mm

CM-SRK-060 Replacement Kit Ø6 mm

CM-SMD-346 Assembly Device

CM-SBW-001 Bearing Puller

Single open-end Wrench 24 mm





Starter Set “inch dimensions” Includes:

CoolSpeed® mini Air

CM-SRK-013 Replacement Kit Ø1/8“ (2 pcs)

CM-SRK-019 Replacement Kit Ø3/16“ (1 pc)

CM-SMD-1319 Assembly Device

CM-SBW-001 Bearing Puller

Single open-end Wrench 24 mm

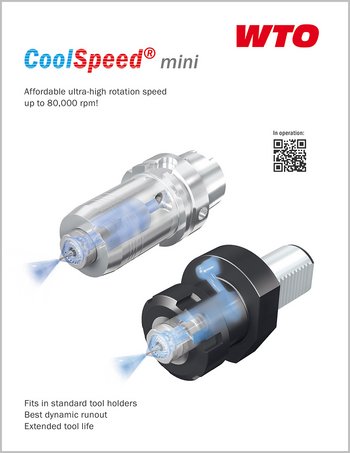

CoolSpeed® mini

(PDF, 3,3 MB)



Visit our Applications page to discover how our customers are using CoolSpeed® mini to be more productive
