Broaching Unit for CNC Turning Centers

The driven broaching unit for economic manufacturing of oriented keyways and splines with up to 1.000 strokes per minute.



This investment pays.

Stoßeinheit für CNC Drehzentren/Broaching Unit for CNC Turning Centers
By accessing the YouTube video, you consent to your data being transmitted to YouTube: For details, see Privacy Policy under “Plugins and tools - YouTube”

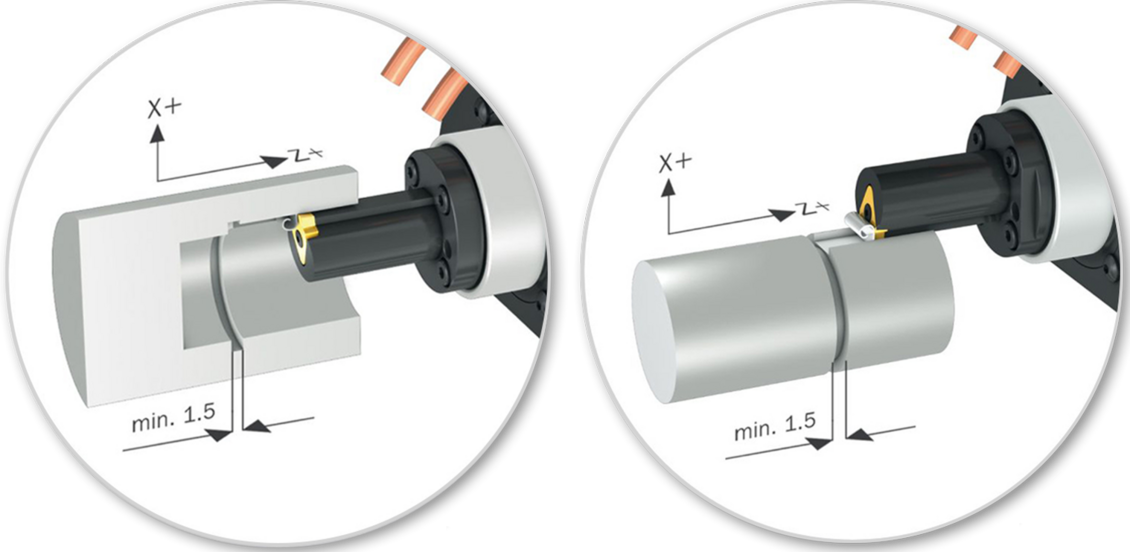

ID and OD broaching



Same insert holder for ID and OD broaching: Simply by rotating insert holder 180 degrees.

Details

Function



Position insert on Z

Cutter drives into workpiece

Cutter lifts from workpiece

Lift-off function prevents wear/breakage when cutter retracts

Sample workpieces



Keyway

Internal involute spline according to DIN 5482

External involute spline according to DIN 5480

Benefits and technical specifications
  • For economic manufacturing of oriented keyways and splines.


  • Up to 1,000 strokes per minutes.
  • 32 mm and 52 mm working stroke.
  • 10 mm max. groove width.
  • Max. feed per stroke of 0.15 mm
  • Direction of cut X+ or X.
  • Same insert holder for ID and OD broaching: Simply by rotating insert holder 180 degrees.
