WTO offers for Swiss Type Turning Centers a suitable comprehensive program of driven precision toolholders.
Besides the standard versions for axial and radial operations we are offering application specific driven toolholders to increase the productivity of your Swiss Type turning center:
High Productive Thread Whirling with patented quick change system for significant reduction of tool set-up time: The insert holder can quickly be changed from the backside.
Suitable insert holders available from leading cutting tool manufacturers.
Thread Whirling Units in the Online Catalog
The thread whirling unit can remain installed and aligned in the machine tool.
Thread Whirling Unit type 42BJ
Thread Whirling Unit type 54BJ
Optional accessoires I

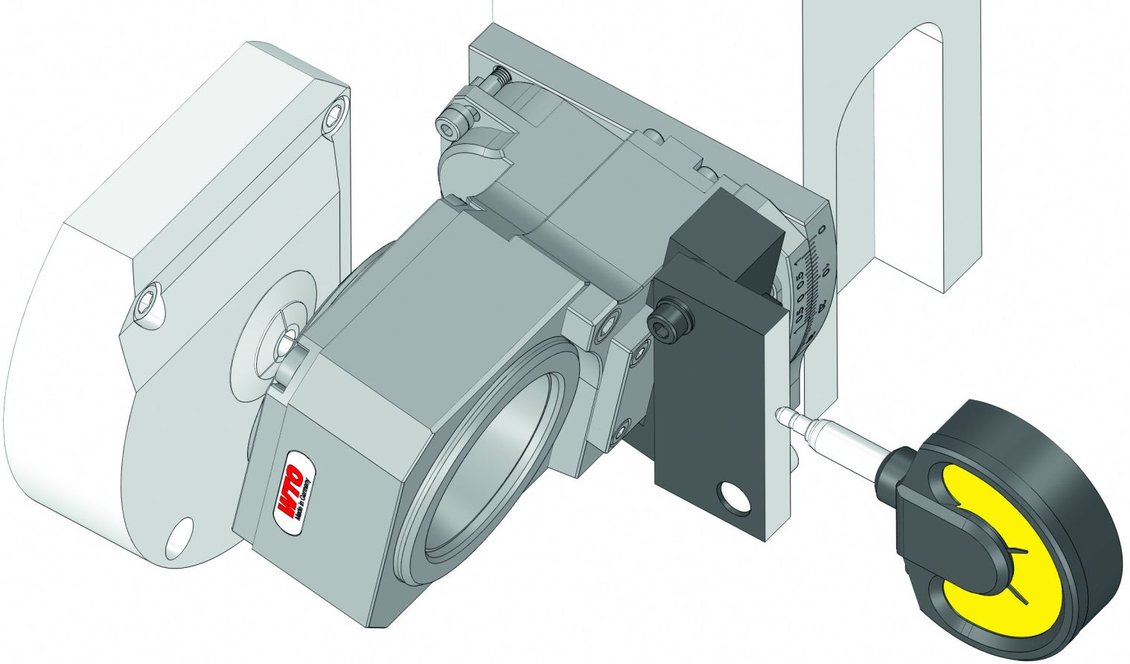

Sine bar for high accurate angular adjustment
Item No. 96394
Optional accessoires II
External coolant supply
Item No. 91749
The new quick change system with very compact design and very high precision.
The perfect combination: ER collet chuck and quick change system in one toolholder.
nanoFlex® in the Online Catalog
nanoFlex® chuck ready for adapter clamping.
01 Toolholder
02 nanoFlex® chuck
03 ER collet
04 Collet nut
05 Screw to plug clamping screw hole
06 Drive ring for torque transmission of the nanoFlex® quick change adapter
07 nanoFlex® clamping screw
08 nanoFlex® quick change adapter
09 One-hand wrench with set torque value to clamp and unclamp the nanoFlex® quick change adapters
10 Drive dogs for torque transmission
11 Axial contact surface for high stiffness of the nanoFlex® adapter
12 Taper for ER collets and nanoFlex® adapter
05 Plug screw
03 With ER collet
Regular tool clamping using collets.
07 Clamping screw
08 With nanoFlex® collet chuck adapter
Quick change using nanoFlex® adapter.
Thread Whirling Unit (PDF, 0,4 MB)
Product Portfolio (PDF, 4,2 MB)
nanoFlex® (PDF, 1.0 MB)
nanoFlex Toolholder programm for Citizen (PDF, 0.1 MB)
nanoFlex Toolholder Program for Star (PDF, 1.0 MB)
nanoFlex Toolholder Program for Tsugami (PDF, 1.0 MB)
