旋风铣刀座

高生产效率的旋风铣刀座



WTO有专利的快换刀具系统的高生产效率的旋风铣刀座显著降低了刀具更换时间: 铣刀盘可在旋风铣刀座背面快速置换.



由一流的刀具制造商提供铣刀盘.



旋风铣刀座的在线样本





• 有专利的快换刀具置换系统显著降低了刀具置换时间.
• 铣刀盘可在旋风铣刀座背面快速置换.
• 旋风铣刀座可安装在机器设备上进行校准.
• 高精度, 高重复性 (精确度达到± 0,005 mm).

旋风铣刀座可安装在机器设备上进行校准.

旋风铣刀座 42BJ型

旋风铣刀座 54BJ型

可选的配件I



用于高精度角度调整的正弦尺

订购号. 96394

可选配件II



外部切削液供应

订购号. 91749

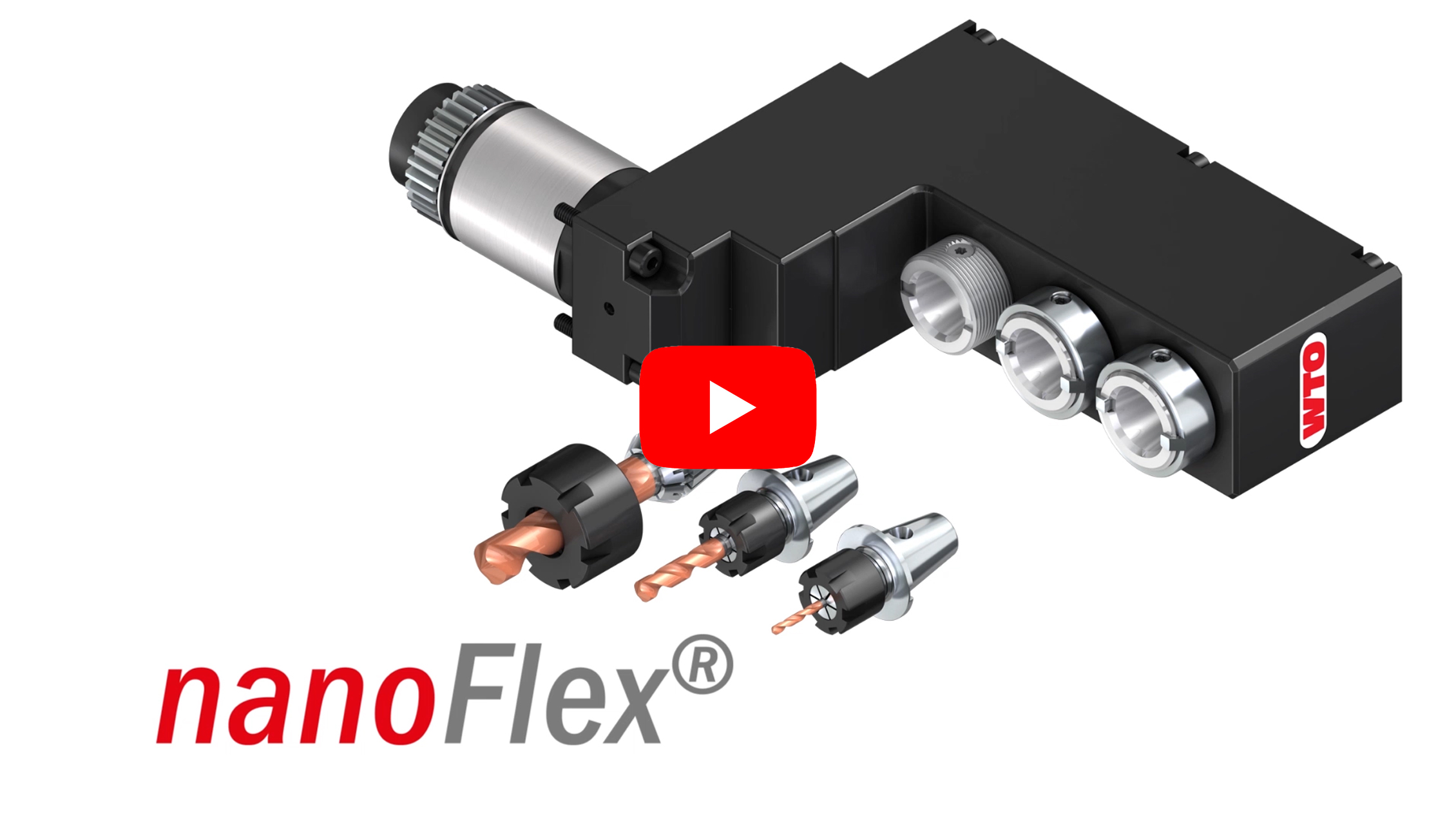

nanoFlex® Quick Change System

nanoFlex® Quick Change System



The new quick change system with very compact design and very high precision.



The perfect combination: ER collet chuck and quick change system in one toolholder.



nanoFlex® in the Online Catalog











nanoFlex® chuck ready for adapter clamping.

01 Toolholder
02 nanoFlex® chuck
03 ER collet
04 Collet nut
05 Screw to plug clamping screw hole
06 Drive ring for torque transmission of the nanoFlex® quick change adapter
07 nanoFlex® clamping screw
08 nanoFlex® quick change adapter
09 One-hand wrench with set torque value to clamp and unclamp the nanoFlex® quick change adapters

10 Drive dogs for torque transmission
11 Axial contact surface for high stiffness of the nanoFlex® adapter
12 Taper for ER collets and nanoFlex® adapter

05 Plug screw
03 With ER collet

Regular tool clamping using collets.

07 Clamping screw
08 With nanoFlex® collet chuck adapter

Quick change using nanoFlex® adapter.
