Precision Toolholders for Swiss Type Turning Centers

WTO offers for Swiss Type Turning Centers a suitable comprehensive program of driven precision toolholders.

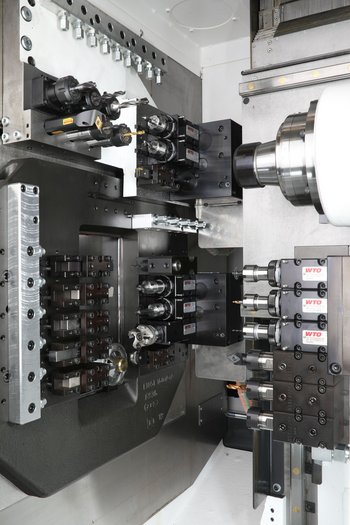

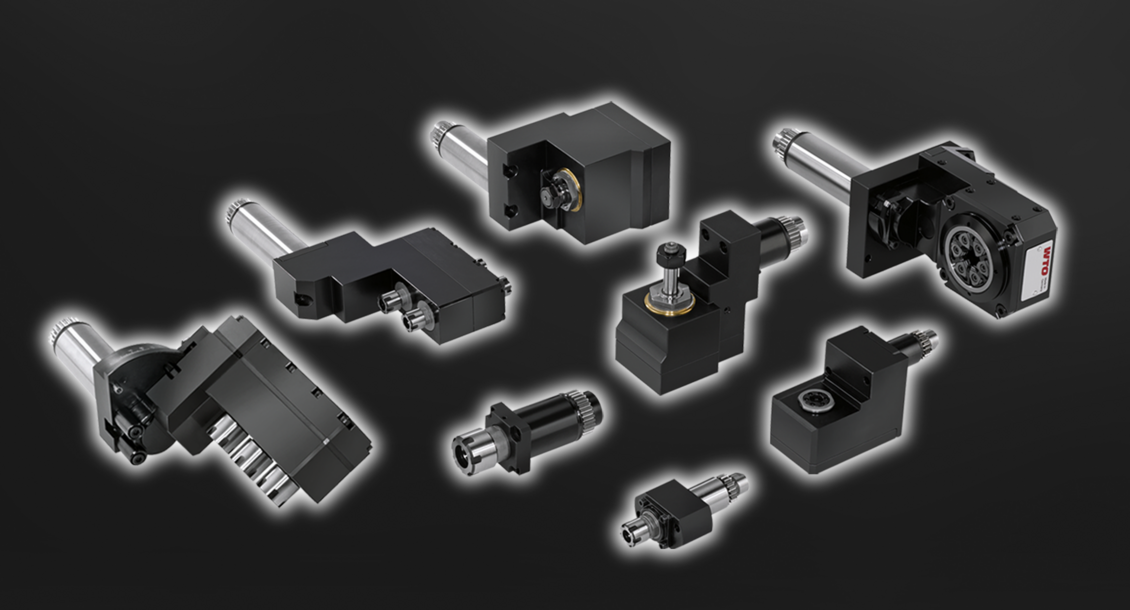

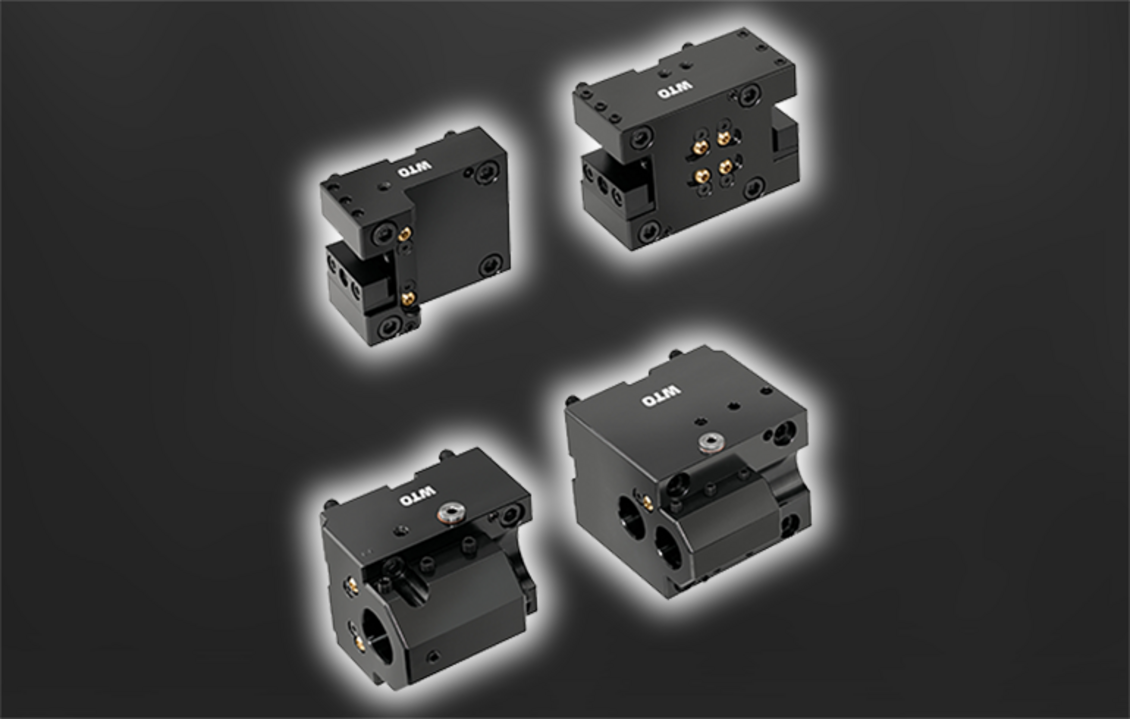

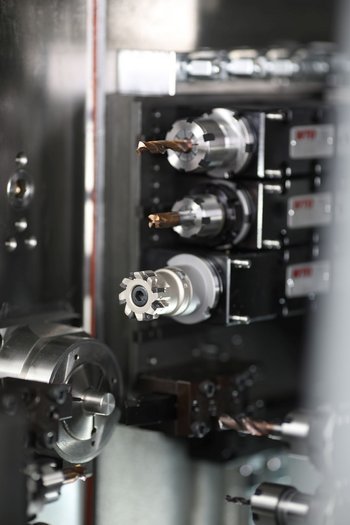

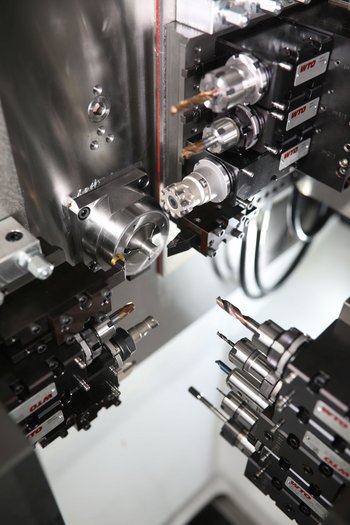

Besides the standard versions for axial and radial operations we are offering application specific driven toolholders to increase the productivity of your Swiss Type turning center:

  • Gear hobbing units
  • Adjustable angle drill/milling units
  • High speed drill/milling units
  • Deep hole drilling units up to 200 bar coolant pressure
  • Slitting saw units
  • Quick change systems
  • Thread whirling units

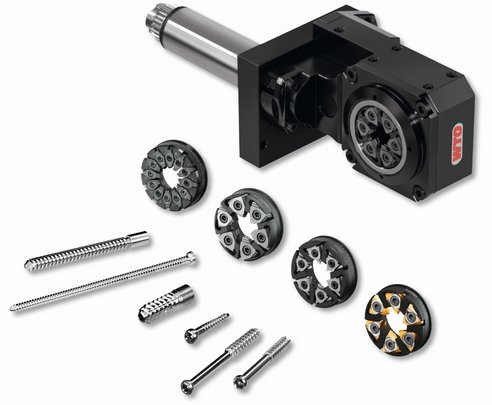

Thread Whirling Units

High Productive Thread Whirling



High Productive Thread Whirling with patented quick change system for significant reduction of tool set-up time: The insert holder can quickly be changed from the backside.



Suitable insert holders available from leading cutting tool manufacturers.



Thread Whirling Units in the Online Catalog



  • Patented quick change system for significant reduction of tool change time.

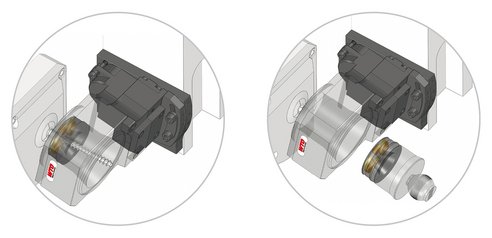

  • The insert holder can quickly be changed from the backside.
  • The thread whirling unit can remain installed and aligned in the machine tool.
  • Low runout tolerance and high repeatability of the cutting inserts (± 0.005 mm).

The thread whirling unit can remain installed and aligned in the machine tool.

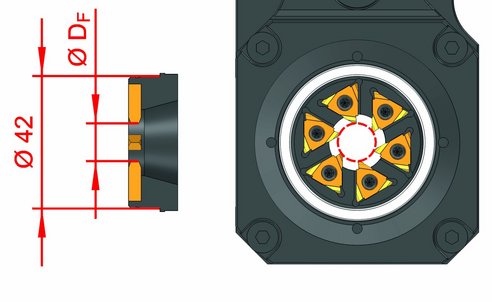

Thread Whirling Unit type 42BJ

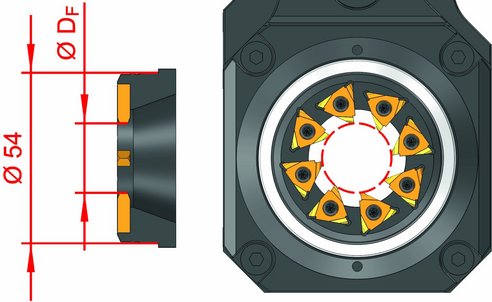

Thread Whirling Unit type 54BJ

Optional accessoires I

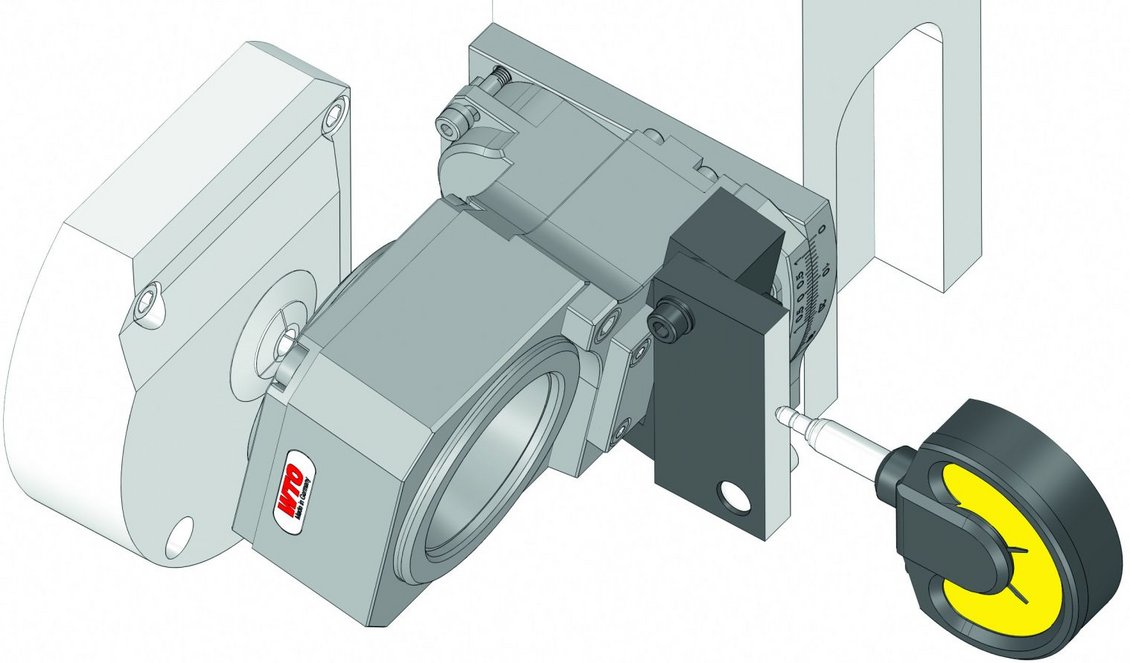

Sine bar for high accurate angular adjustment

Item No. 96394

Optional accessoires II

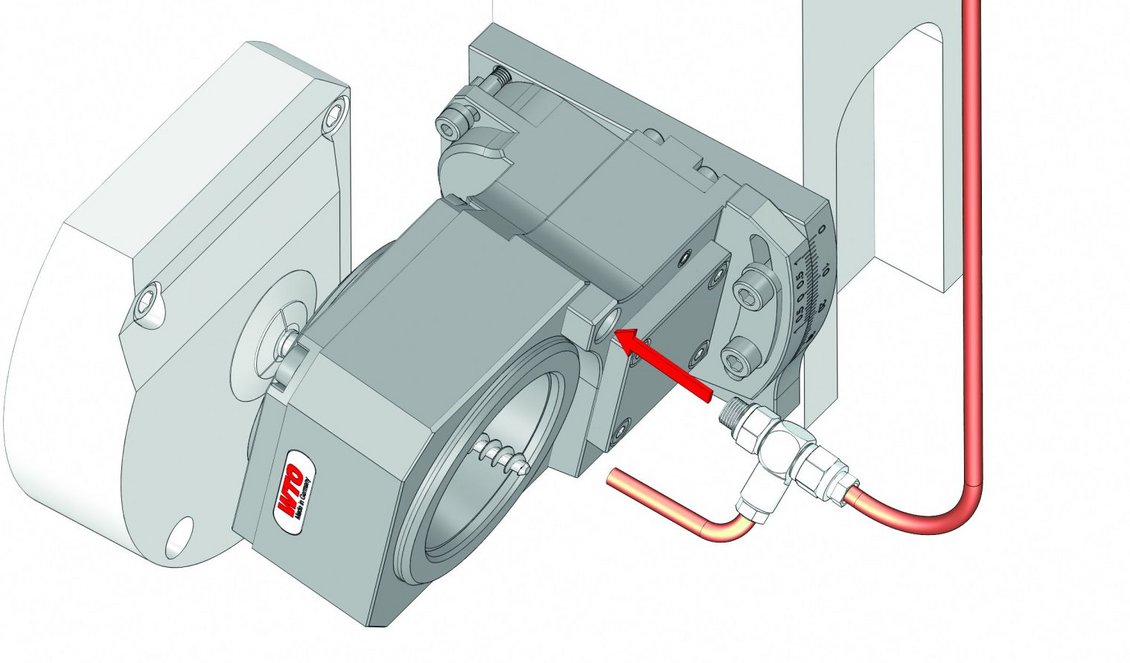

External coolant supply

Item No. 91749

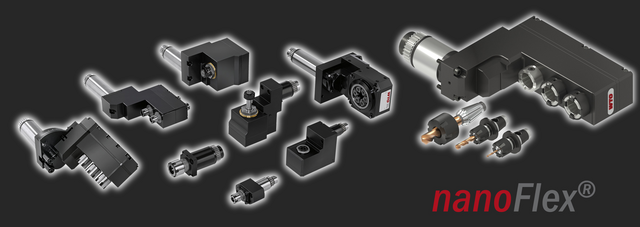

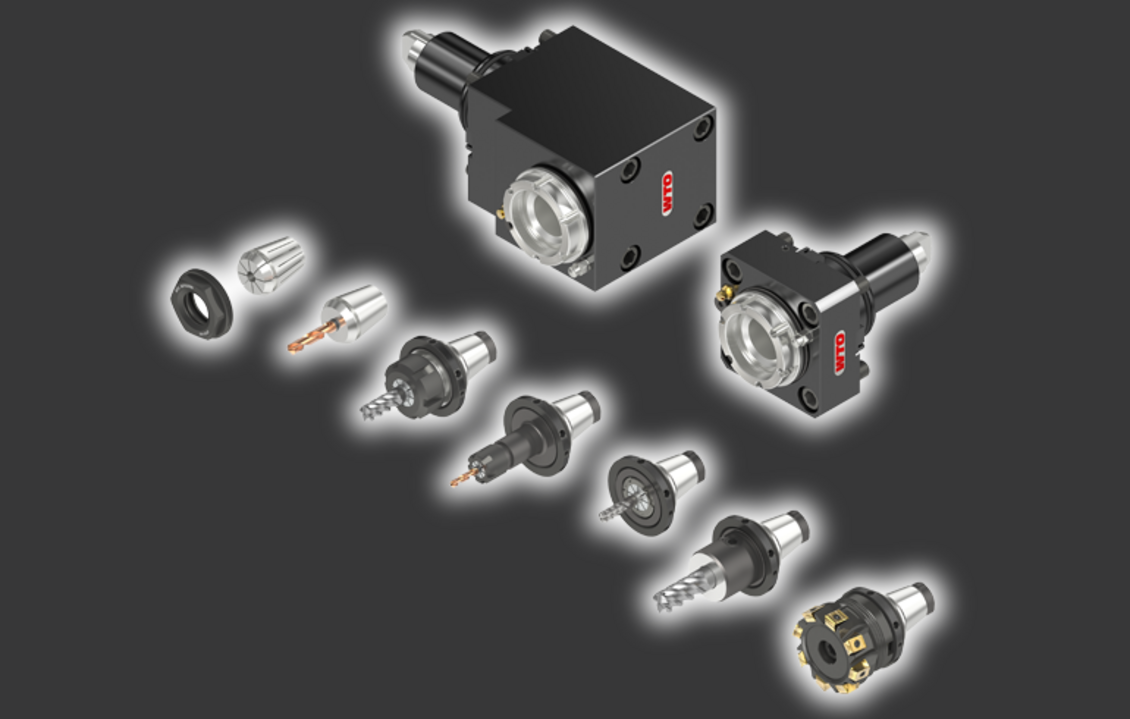

nanoFlex® Quick Change System

nanoFlex® Quick Change System



The new quick change system with very compact design and very high precision.



The perfect combination: ER collet chuck and quick change system in one toolholder.




nanoFlex® in the Online Catalog

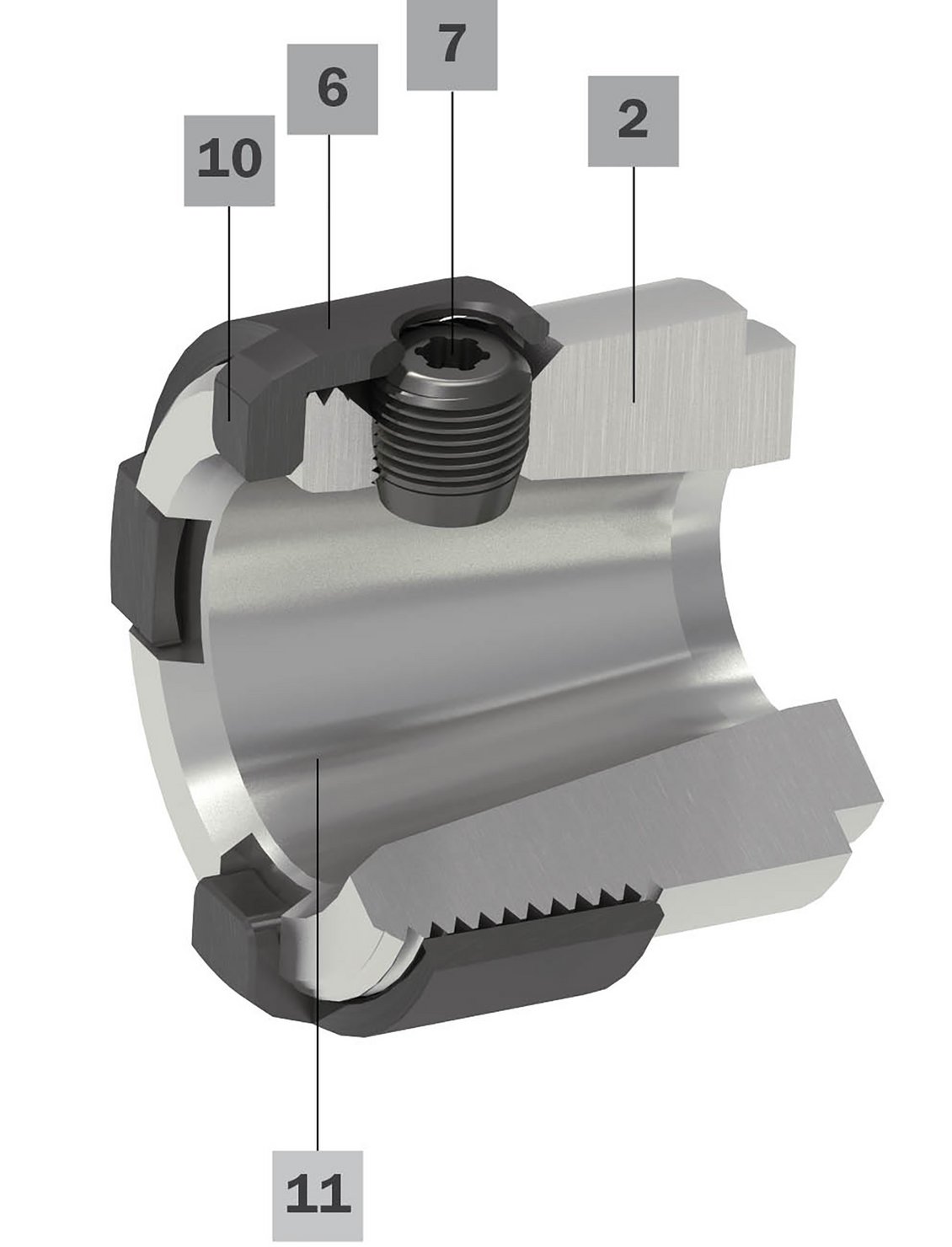

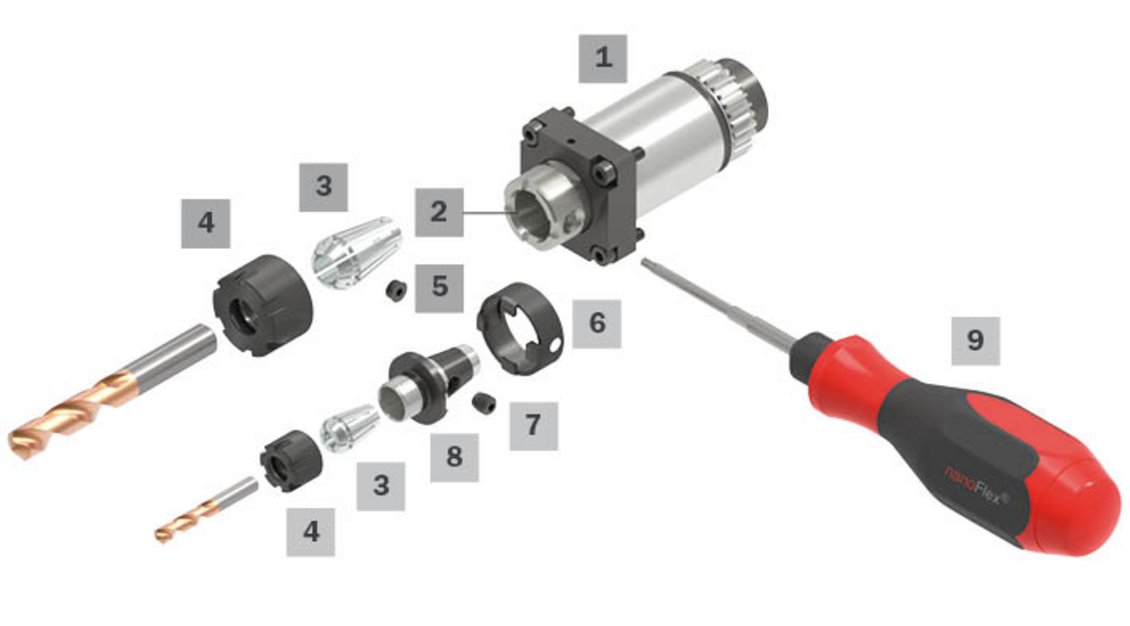

01 Toolholder
02 nanoFlex® chuck
03 ER collet
04 Collet nut
05 Screw to plug clamping screw hole
06 Drive ring for torque transmission of the nanoFlex® quick change adapter
07 nanoFlex® clamping screw
08 nanoFlex® quick change adapter
09 One-hand wrench with set torque value to clamp and unclamp the nanoFlex® quick change adapters

10 Drive dogs for torque transmission
11 Axial contact surface for high stiffness of the nanoFlex® adapter
12 Taper for ER collets and nanoFlex® adapter



05 Plug screw

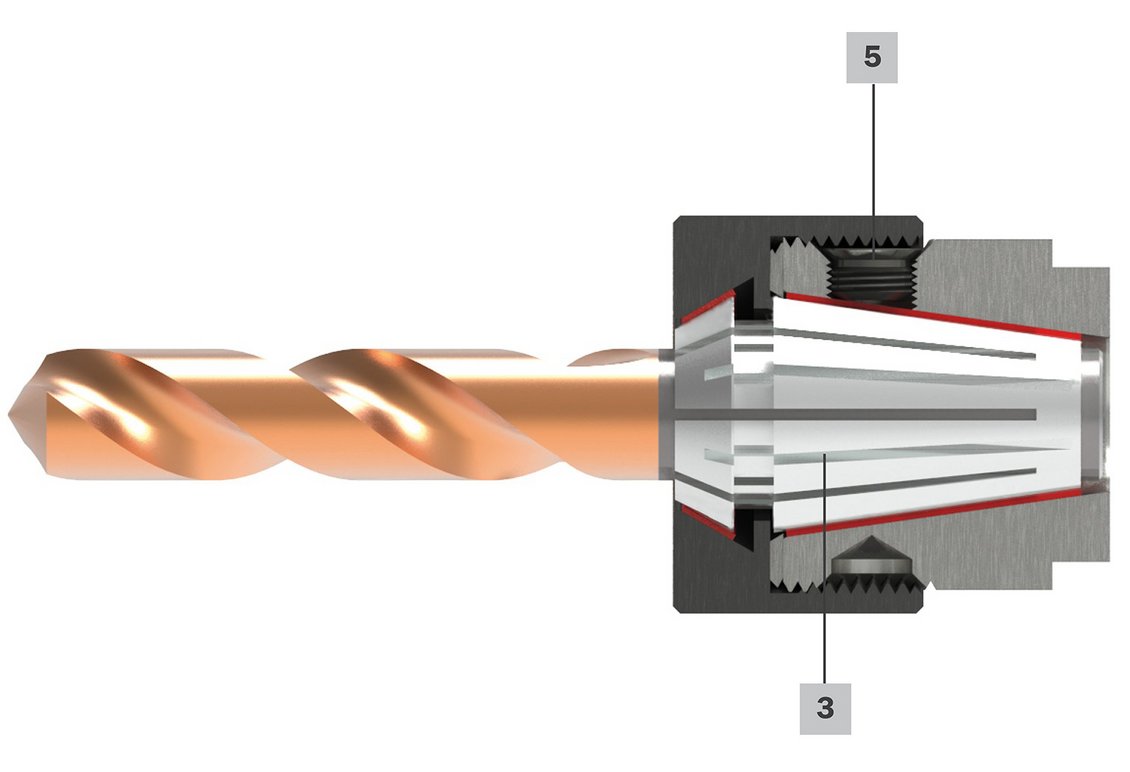

03 With ER collet

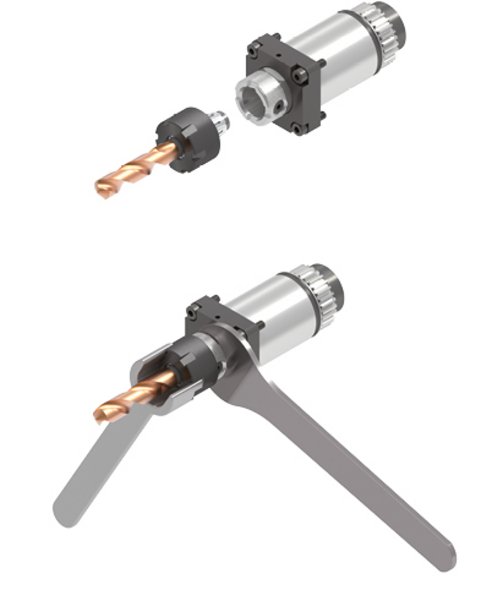

Regular tool clamping using collets.

07 Clamping screw

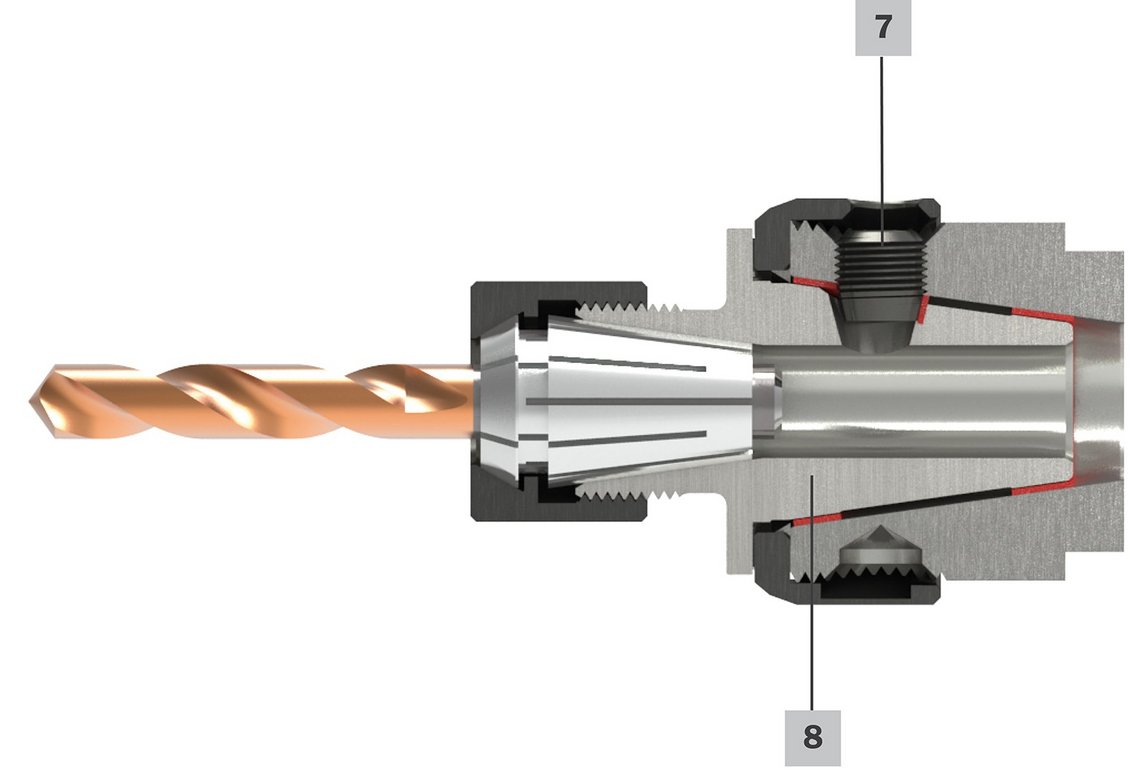

08 With nanoFlex® collet chuck adapter

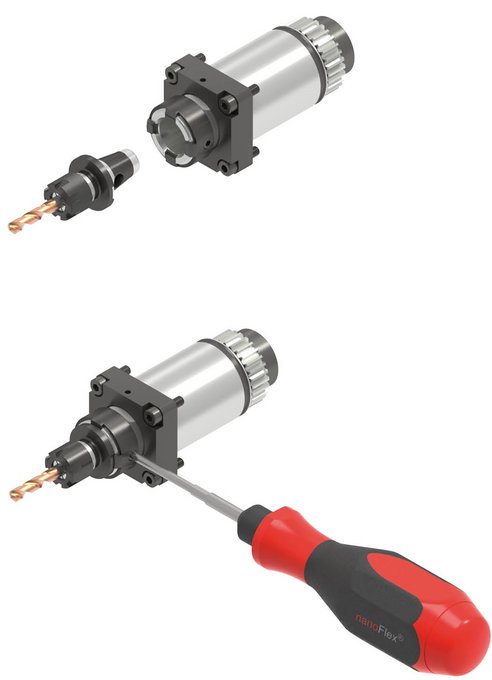

Quick change using nanoFlex® adapter.
