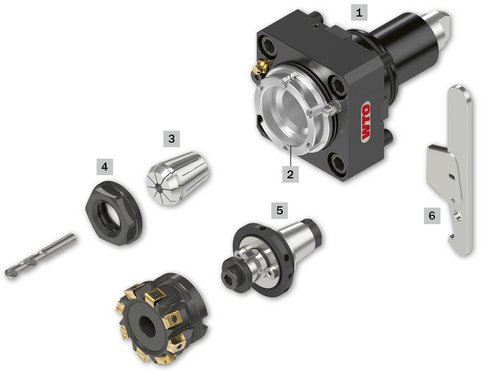

Details

01 Tool Holder
02 QuickFlex® chuck
03 Collet
04 Collet nut
05 QuickFlex® adapter
06 One-hand wrench (patent registered)
07 Thread for QuickFlex® adapter and collet nut

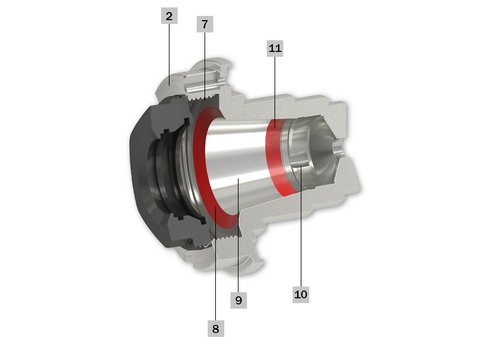

02 QuickFlex® chuck
07 Thread for QuickFlex® adapter and collet nut
08 Short taper for radial centering and axial support of the QuickFlex® adapter
09 Taper of the ER collet chuck
10 Polygonal torque transmission for QuickFlex® adapter
11 Radial bending support of the QuickFlex® adapter for high stiffness under load

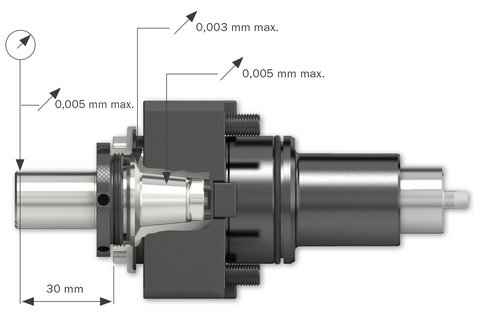

Permanent accuracy of the run-out is guaranteed by two independent taper connections.

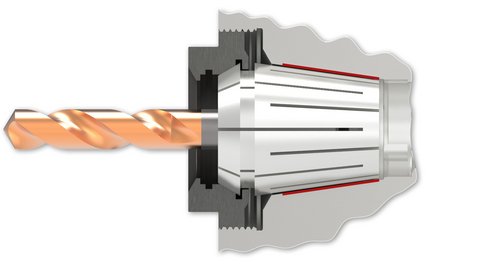

With ER collet

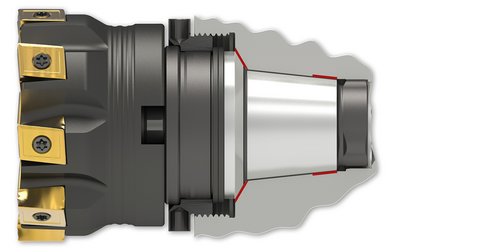

With QuickFlex® mill arbor adapter

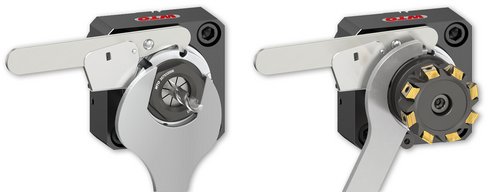

Quick and safe tool change with the one-hand wrench (patent registered).

Benefits

• ER collet chuck and quick change system in one Tool Holder.


• Minimal investment because you can start with the Tool Holder. You simply clamp the cutting tools directly in the Tool Holder using a standard ER collet chuck.
  The benefit for you: You start with what you need first and you buy later the quick change adapters when you like to add the quick change function.
• Maximal expandability  because you can complement with quick change adapters at any time.
  The benefit for you: You can start with a basic system at low costs and later you add the quick change adapters.
• The cutting tools can be pre-set while the machine is operating.
  The benefit for you: The time for tool change can be significantly reduced.
• Quick and safe tool change with the one-hand wrench (patent registered).

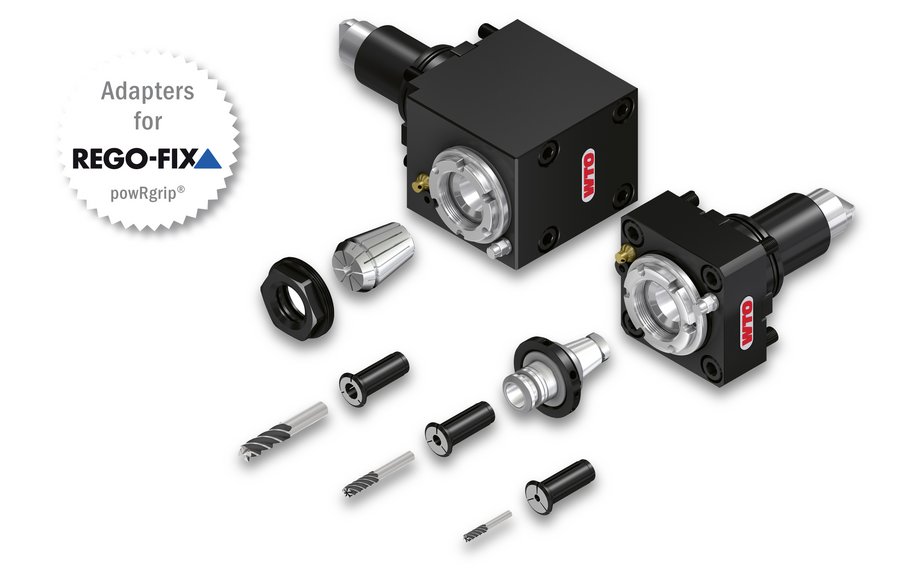

QuickFlex® adapters for REGO-FIX powRgrip®

QuickFlex® - The quick change system for high performance and precision with QuickFlex® adapters for REGO-FIX powRgrip®.

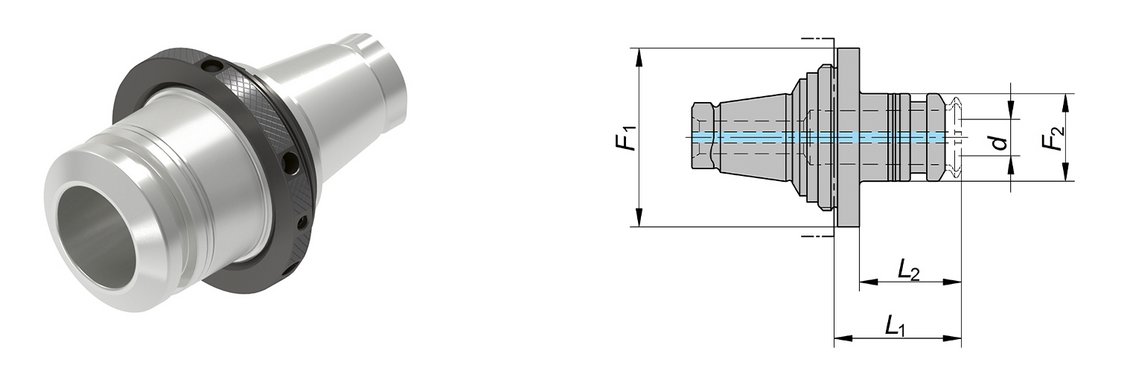

powRgrip^® collet chuck adapter

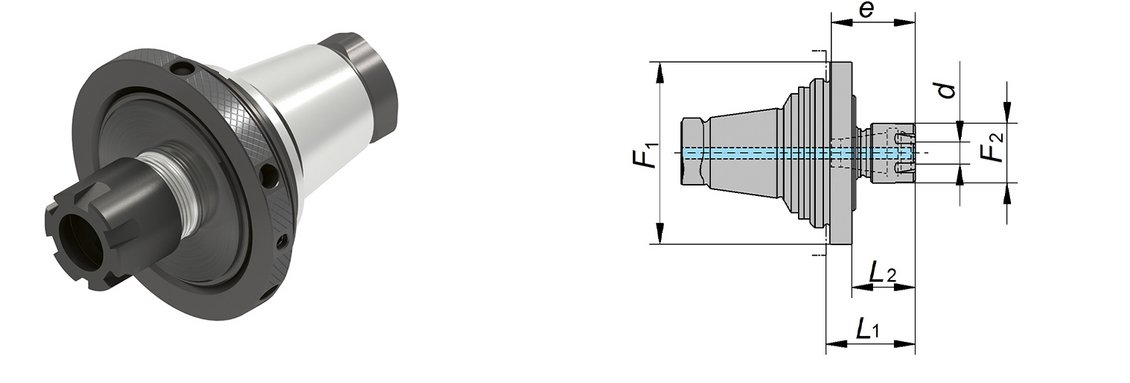

Mini floating chuck adapter MPHC
DIN 6499, ISO 15488

The powRgrip® system:

• Highly precise powRgrip® collet
• QuickFlex® powRgrip® collet chuck adapter
• powRgrip® clamping unit (PGU/PGC) (automatic or manual)



By accessing the YouTube video, you consent to your data being transmitted to YouTube: For details, see Privacy Policy under “Plugins and tools - YouTube”

By accessing the YouTube video, you consent to your data being transmitted to YouTube: For details, see Privacy Policy under “Plugins and tools - YouTube”

©REGO-FIX powRgrip®



• Simple
  The benefit for you: Tool is clamped in 8 seconds by pushing only one single button.
• Safe
  The benefit for you: No heat up – high clamping force.
• powRgrip®
  The benefit for you: The tool clamping system of today and the future

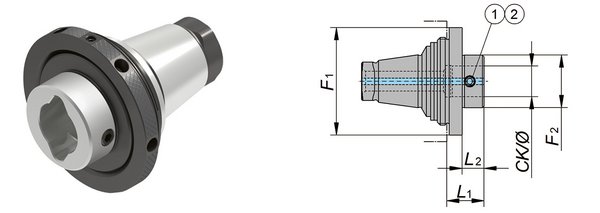

QuickFlex® adapters for BIG KAISER

QuickFlex^® adapters for BIG KAISER
for boring tools in sizes CBK1 up to CBK4



Tool combinations and work ranges:



Precision boring heads EWN, Series 112, Ø 0.4 – 24.8 mm

Precision boring heads EWN, Series 310, Ø 20 – 74 mm

Rough boring heads SW, Series 319, Ø 20 – 66 mm

Catalog Download

QuickFlex® Adapter (PDF, 4 MB)

Product Portfolio (PDF, 4,2 MB)

Product Finder

Please refer to our Online Catalog for the precision Tool Holders that are suitable for your machine:
