Revolutionary patented spindle technology for rotation speed up to 60,000 rpm.

CoolSpeed® MAX is a universally applicable ultra-high-speed spindle, driven by two turbines of different sizes and an adjustable number of jets.

With the small turbine, maximum speeds of up to 60,000 rpm can be achieved; with the large turbine,CoolSpeed® MAX provides higher torque in the lower speed range.

Due to the adjustable number of jets, it is possible to adjust the coolant flow (volume flow) and as a result the maximum performance to the application. CoolSpeed® MAX can therefore be used in a very energy-efficient way and can also be operated with coolant pumps as low as 12 l/min (3.2 gal/min).

Driven by: Coolant or Cutting Oil
Rotation Speed: 20.000-60.000 1/min
Number of Jets: 1-3 (adjustable)
Number of Turbines: 1 small + 1 large (adjustable)
Operating Pressure: 10-70 bar (145-1015 psi)
Flow Rate: 12-32 l/min (3-8.5 gal/min)
Maximum Power: 360-1100 W
Cutting Tool Shank Ø: 0.5-7.0 mm

1 Two turbines for optimal speed coverage

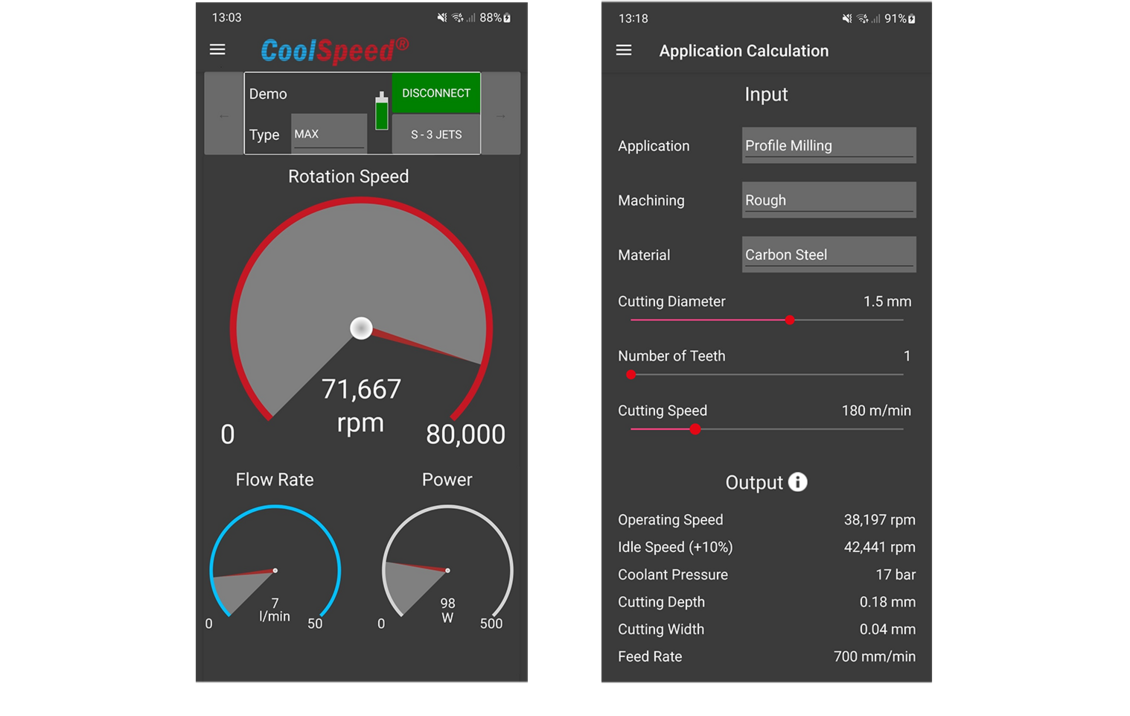

2 Wireless „Smart speed monitoring
3 Coolant supply through the shank or side port
4 Energy harvesting for electronics

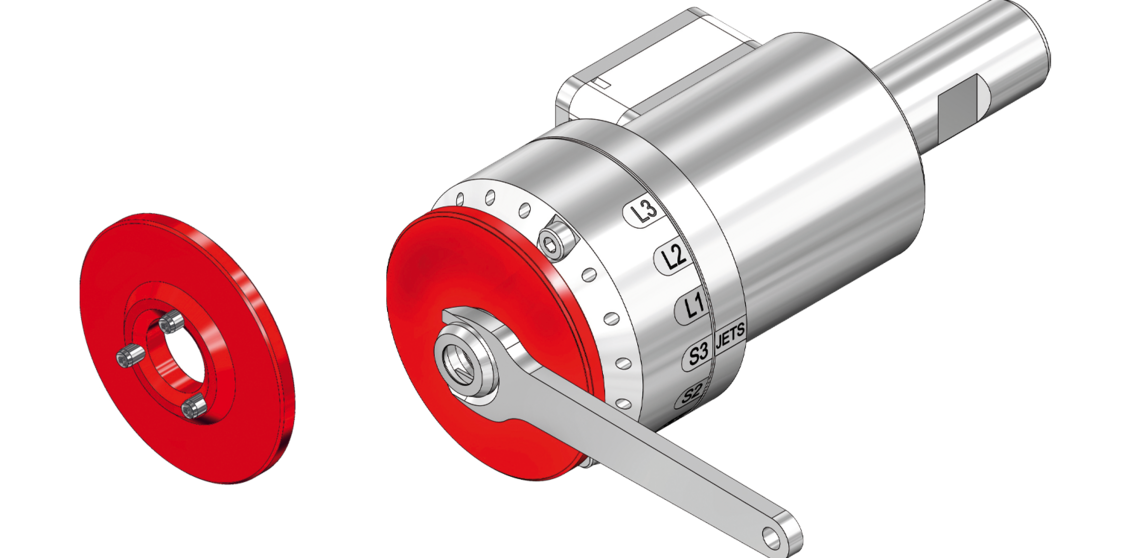

5 Adjustable nozzles for flexible use

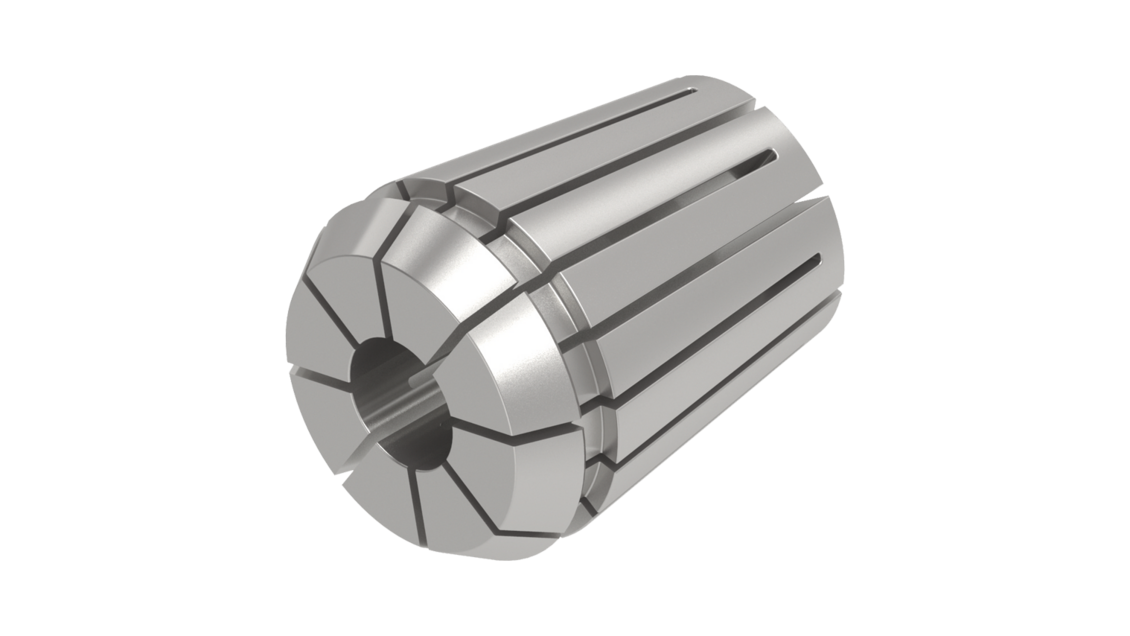

6 Collet chuck ER-11 MS
7 Coolant supply directly to the cutting tool
