瑞士型走心車床用精密刀座

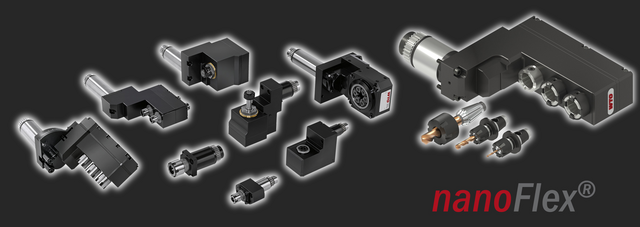

WTO 提供瑞士型走心車床用全系列精密動力刀座.

除標準軸向及徑向刀座外, 我們也提供特定用途的動力刀座以提升瑞士型走心車床加工效率.

  • 滾齒刀座
  • 可調角度刀座
  • 圓鋸開槽刀座
  • 高壓切削液達 200 bars槍鑽刀座
  • 旋風銑刀座
  • Quick change systems
  • Thread whirling units
旋風銑刀座

高效率旋風銑刀加工



大幅降低刀盤更換時間之專利刀盤快換系統: : 刀盤可於刀座後方快速更換, 減少停機時間.



可裝用各廠牌之旋風銑刀盤.



旋風銑刀座



  • 專利刀盤快換系統, 大幅降低刀盤更換時間.
  • 刀盤可於刀座後方快速更換.
  • 旋風銑刀座不需由機床上拆下.
  • 低偏擺及高重複性刀尖精度 (± 0.005 mm).

旋風銑刀座不需由機床上拆下.

旋風銑刀座 42BJ 型

旋風銑刀座  54BJ 型

選購配件 I



高精度角度調整用正弦規

料號: 96394

選購配件II



外部切削液油嘴

料號: 91749

nanoFlex® Quick Change System

nanoFlex® Quick Change System



The new quick change system with very compact design and very high precision.



The perfect combination: ER collet chuck and quick change system in one toolholder.



nanoFlex® in the Online Catalog







nanoFlex® chuck ready for adapter clamping.

01 Toolholder
02 nanoFlex® chuck
03 ER collet
04 Collet nut
05 Screw to plug clamping screw hole
06 Drive ring for torque transmission of the nanoFlex® quick change adapter
07 nanoFlex® clamping screw
08 nanoFlex® quick change adapter
09 One-hand wrench with set torque value to clamp and unclamp the nanoFlex® quick change adapters



10 Drive dogs for torque transmission
11 Axial contact surface for high stiffness of the nanoFlex® adapter
12 Taper for ER collets and nanoFlex® adapter

05 Plug screw
03 With ER collet

Regular tool clamping using collets.

07 Clamping screw
08 With nanoFlex® collet chuck adapter

Quick change using nanoFlex® adapter.
