80,000 rpm
High Speed
< 4 microns
Dynamic Runout
420 W
Output Power
CoolSpeed® mini is a new, high speed, turbine-driven spindle that costs a fraction of competing spindle systems. It is plug-and-play, crash-resistant, and maintenance-free.
Continuous high precision
- The cutting tool shank serves as the spindle shaft
- Dynamic run-out 4 microns or better
- Bearings easily replaced with each cutting tool change
Efficiently turn any machine into an ultra-high-speed machining center
- Milling Centers, Turning Centers, Swiss Type Lathes
- Extends the machine spindle life time
- Fits in standard tool holders for automatic tool change
Includes 2 bearings and 1 turbine, which should be replaced each time the tool is changed. The bearings and turbines are not intended for reuse. Each Replacement kit is suitable for the respective tool shank diameter
Tool Shank Diameter: 3 mm, 4 mm, 6 mm
Used to assemble the bearings and turbine onto the tool shank. The assembly device works with any of the three supported metric tool shank diameters.
Tool Shank Diameter: 3 mm, 4 mm, 6 mm

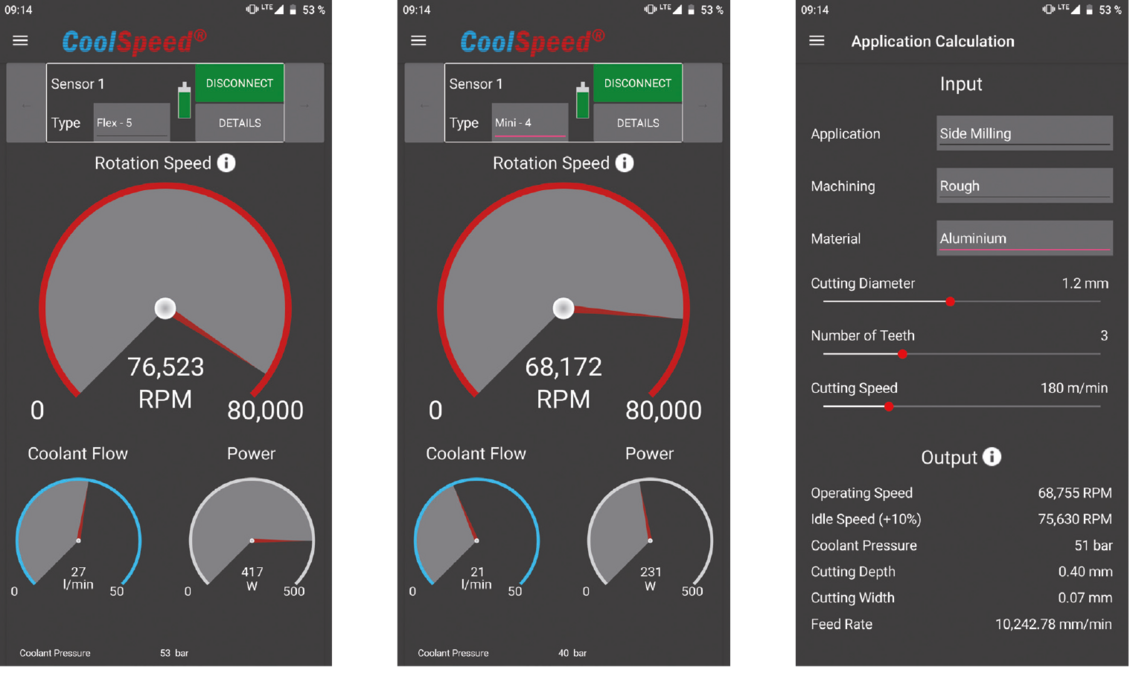

The App „CoolSpeed® Pressure Gauge“ connects to the Bluetooth Pressure Gauge and displays the rotation speed, coolant pressure, flow rate and power of the high-speed spindle in real time.
More about the „CoolSpeed® Pressure Gauge“ App

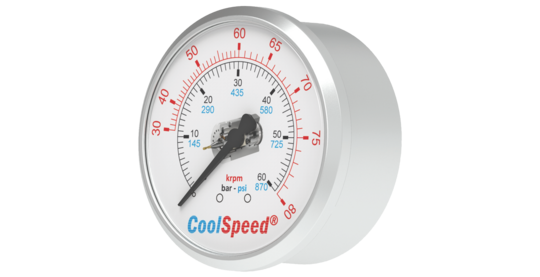

Used to measure operating pressure at spindle face. Secondary scale on gauge face indicates tool rpm.
Use in conjunction with Pressure Gauge Adapter.

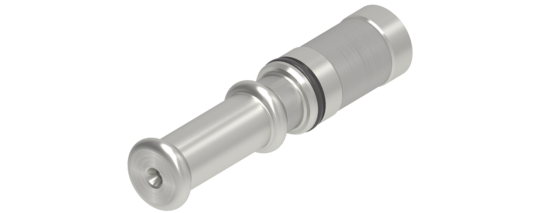

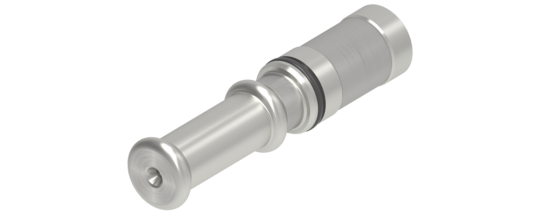

Use adapter with Pressure Gauge to measure operating pressure at spindle face. Adapter fits into standard sealed hold holders with matching inner diameter.
Shaft Diameter: 16 mm, 22 mm, 25 mm, ¾“
All components needed to set up and use CoolSpeed® mini. The products are packed in a handy carrying case.
Includes:
CoolSpeed® mini
CM-SRK-030 Replacement Kit Ø3 mm
CM-SRK-040 Replacement Kit Ø4 mm
CM-SRK-060 Replacement Kit Ø6 mm
CM-SMD-346 Assembly Device
CM-SBW-001 Bearing Puller
Single open-end Wrench 24 mm
CM-SPG-60-C Pressure Gauge G1/4”
Adapter for Pressure Gauge
App „CoolSpeed® Pressure Gauge“
