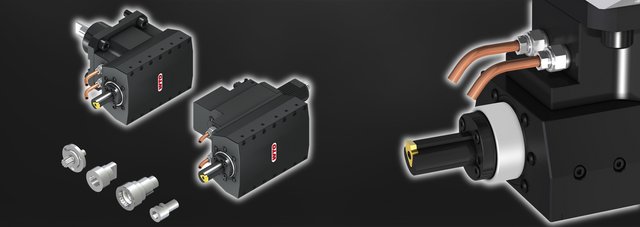

Broaching Unit für CNC Turning Centers

The driven broaching unit for economic manufacturing of oriented keyways and splines with up to 1.000 strokes per minute.



This investment pays.

ID and OD broaching

Same insert holder for ID and OD broaching: Simply by rotating insert holder 180 degrees.

Details

Function

Position insert on Z

Cutter drives into workpiece

Cutter lifts from workpiece

Lift-off function prevents wear/breakage when cutter retracts

Sample workpieces

Keyway

Internal involute spline according to DIN 5482

External involute spline according to DIN 5480

Benefits and technical specifications
  • For economic manufacturing of oriented keyways and splines.
  • Up to 1,000 strokes per minutes.
  • 32 mm working stroke.
  • 10 mm max. groove width.
  • Max. feed per stroke of 0.15 mm.
  • Direction of cut X+ or X.
  • Same insert holder for ID and OD broaching: Simply by rotating insert holder 180 degrees.
