Coolant/Oil Driven

Bühne

80,000 rpm

High Speed

< 4 microns

Dynamic Runout

500 W

Output Power

Revolutionary patented spindle technology for rotation speed up to 80,000 rpm.

CoolSpeed® Flex is a new type of high speed, turbine-driven spindle that features an adjustable number of jets. This innovative new design allows the Flex to operate on machines with coolant flow as low as 2 gal/min (8 l/min). Just like the CoolSpeed® mini, the Flex is plug-and-play, crash-resistant, and maintenance-free.

Continuous high precision

- The cutting tool shank serves as the spindle shaft

- Dynamic run-out 4 microns or better

- Bearings easily replaced with each cutting tool change



Efficiently turn any machine into an ultra-high-speed machining center

- Milling Centers, Turning Centers, Swiss Type Lathes

- Extends the machine spindle life time

- Fits in standard tool holders for automatic tool change

  • rpm: 30,000-80,000
  • Output Power: 150-500 W
  • Tool Shank Diameter: 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 20 mm, 22 mm, 25 mm, ¾ in
  • Operating Pressure: 10-60 bar
  • Flow Rate: 8-28 l/min
  • rpm: 30,000-80,000
  • Output Power: 150-500 W
  • Tool Shank Diameter: 3 mm, 4 mm, 6 mm
  • Shaft Diameter: 20 mm, 22 mm, 25 mm, ¾ in
  • Operating Pressure: 10-60 bar
  • Flow Rate: 8-28 l/min

Optional Accessories

Bühne

Mounting Adapters for Star Applications

Shaft Ø: 34 mm
Bore Ø: 22 mm

Shaft Ø: 34 mm
Bore Ø: 22 mm

Shaft Ø: 34 mm
Bore Ø: 22 mm

Adapter for Citizen

Shaft Ø 25 mm
Bore Ø 19.05 mm (3/4“)

Required Accessories

Bühne

Replacement Kit

Includes 2 bearings and 1 turbine, which should be replaced each time the tool is changed. The bearings and turbines are not intended for reuse. Each Replacement kit is suitable for the respective tool shank diameter.



Tool Shank Diameter:         3 mm, 4 mm, 6 mm

Assembly Device

Used to assemble the bearings and turbine onto the tool shank. The assembly device works with any of the three supported metric tool shank diameters.



Tool Shank Diameter:         3 mm, 4 mm, 6 mm

Bluetooth Pressure Gauge G1/4“

The App „CoolSpeed® Pressure Gauge“ connects to the Bluetooth Pressure Gauge and displays the rotation speed, coolant pressure, flow rate and power of the high-speed spindle in real time.



More about the „CoolSpeed® Pressure Gauge“ App

Replacement Battery for Bluetooth Pressure Gauge G1/4”

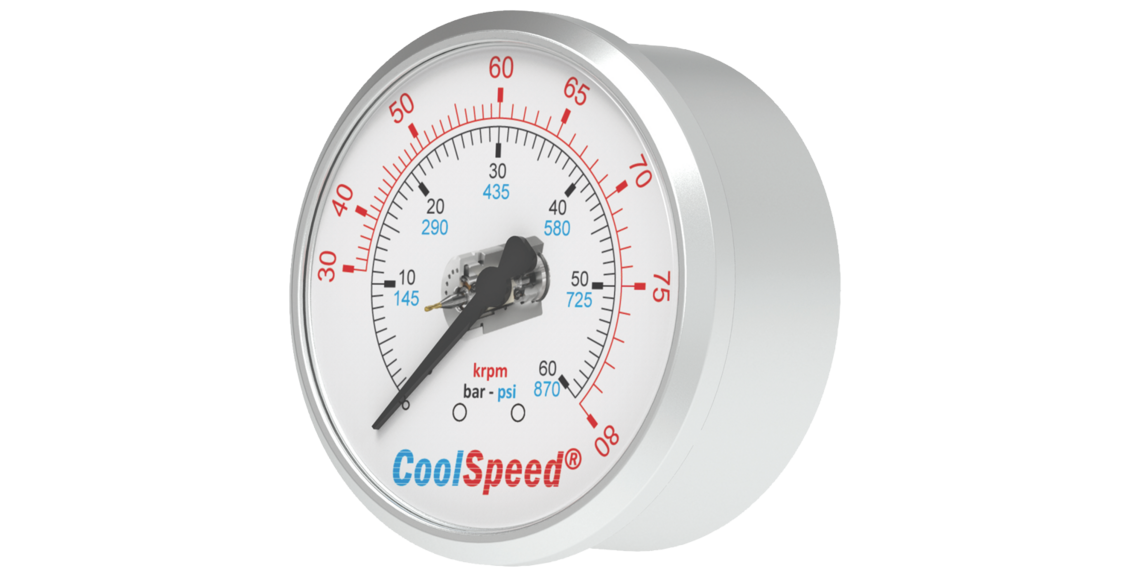

Pressure Gauge G1/4“

Used to measure operating pressure at spindle face. Secondary scale on gauge face indicates tool rpm.



Use in conjunction with Pressure Gauge Adapter.

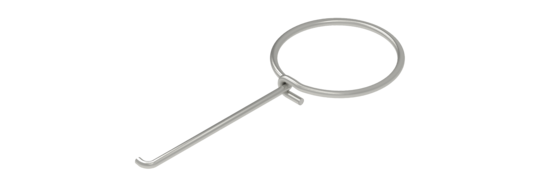

Bearing Puller

Used to remove bearings from the housing.

Master Gauge

Used for high accuracy angular alignment of CoolSpeed® Flex V.

Starter Set

Bühne

All components needed to set up and use CoolSpeed® Flex. The products are packed in a handy carrying case.



Includes:

CoolSpeed® Flex

CM-SRK-030 Replacement Kit Ø3 mm

CM-SRK-040 Replacement Kit Ø4 mm

CM-SRK-060 Replacement Kit Ø6 mm

CM-SMD-346 Assembly Device

CM-SPG-60-SA Bluetooth Pressure Gauge G1/4”

CM-SBW-001 Bearing Puller

Allen Wrench 5 mm

Single open-end wrench 22x27 mm
Double open-end wrench 27 mm

CoolSpeed® Flex​​​​​​​
(PDF, 2,5 MB)



Visit our Applications page to discover how our customers are using CoolSpeed® mini to be more productive

App „CoolSpeed® Pressure Gauge“

Bühne

The app connects to the Bluetooth Pressure Gauge and displays the rotation speed, coolant pressure, flow rate and power of the high-speed spindle in real time.
